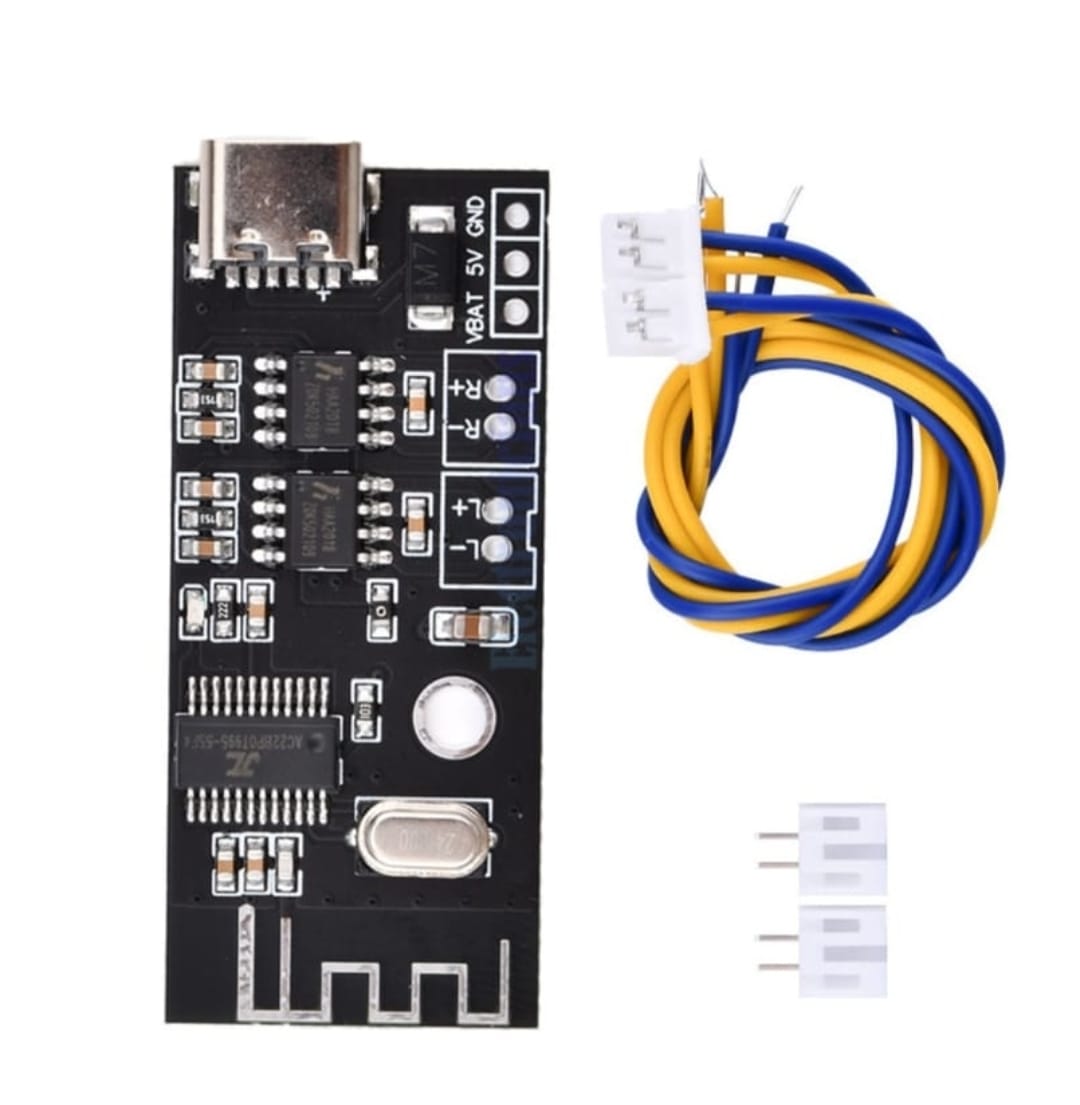

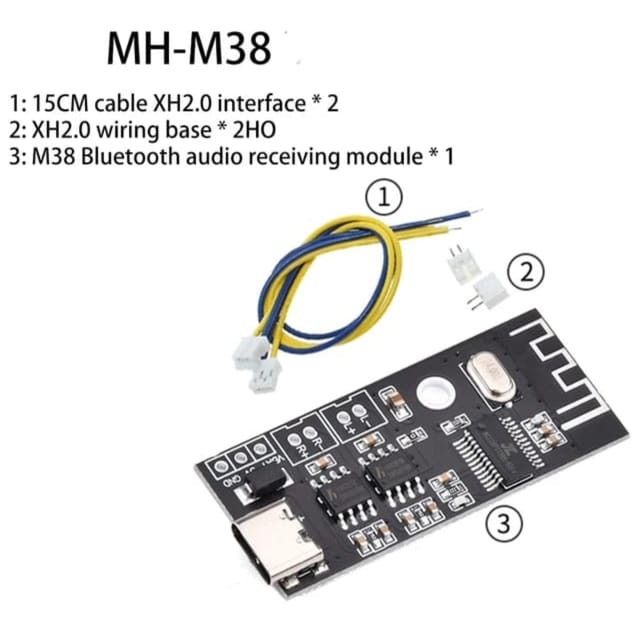

MH-MX38 Wireless Decoder Board Bluetooth 5.1 Audio Module Type-C,
220 BDT
Description:
1. Power supply: It can be directly powered by Type-C 5V, or it can be connected to a 5V power supply or a 3.7V lithium battery (as shown in the figure below). Note that the 5V and 3.7V power supply interfaces are different, 5V is connected to 5V and GND, and the 3.7V lithium battery is connected to VBAT and GND.
2. The maximum operating current is 5V2A, it is recommended to use a 5V2A regulated power supply for better sound quality.
3. Support USB sound card, driver-free (plug and play). Connect the module to the computer with a USB data cable, and the computer can play music through the power amplifier output of the module

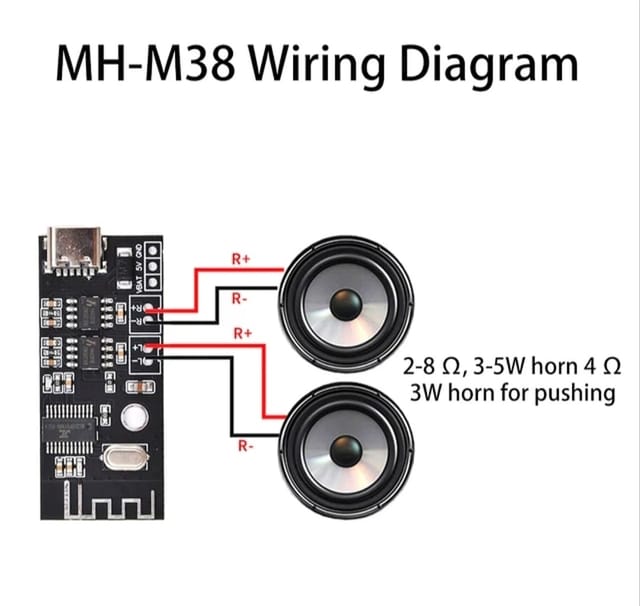

4. Audio output: Output left and right channel stereo audio signals, can be connected to two 2-8Ω, 3-5W speakers respectively, and 4Ω5W speakers are used for push and storage.
5. This product has its own dual 5W power amplifier circuit, and it must not be used with another power amplifier! The output of the two power amplifiers cannot be connected in parallel or the negative poles are connected together, otherwise the power amplifier chip will be damagUS
