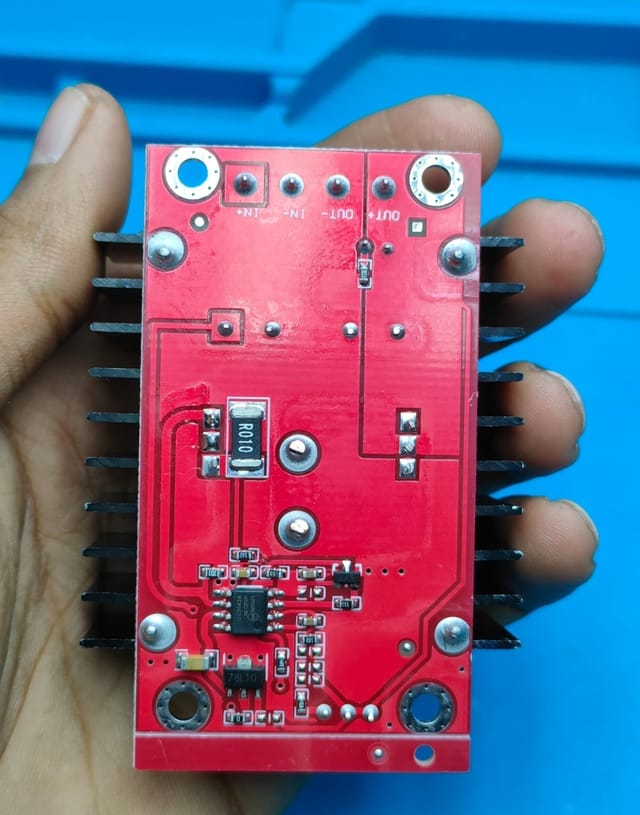

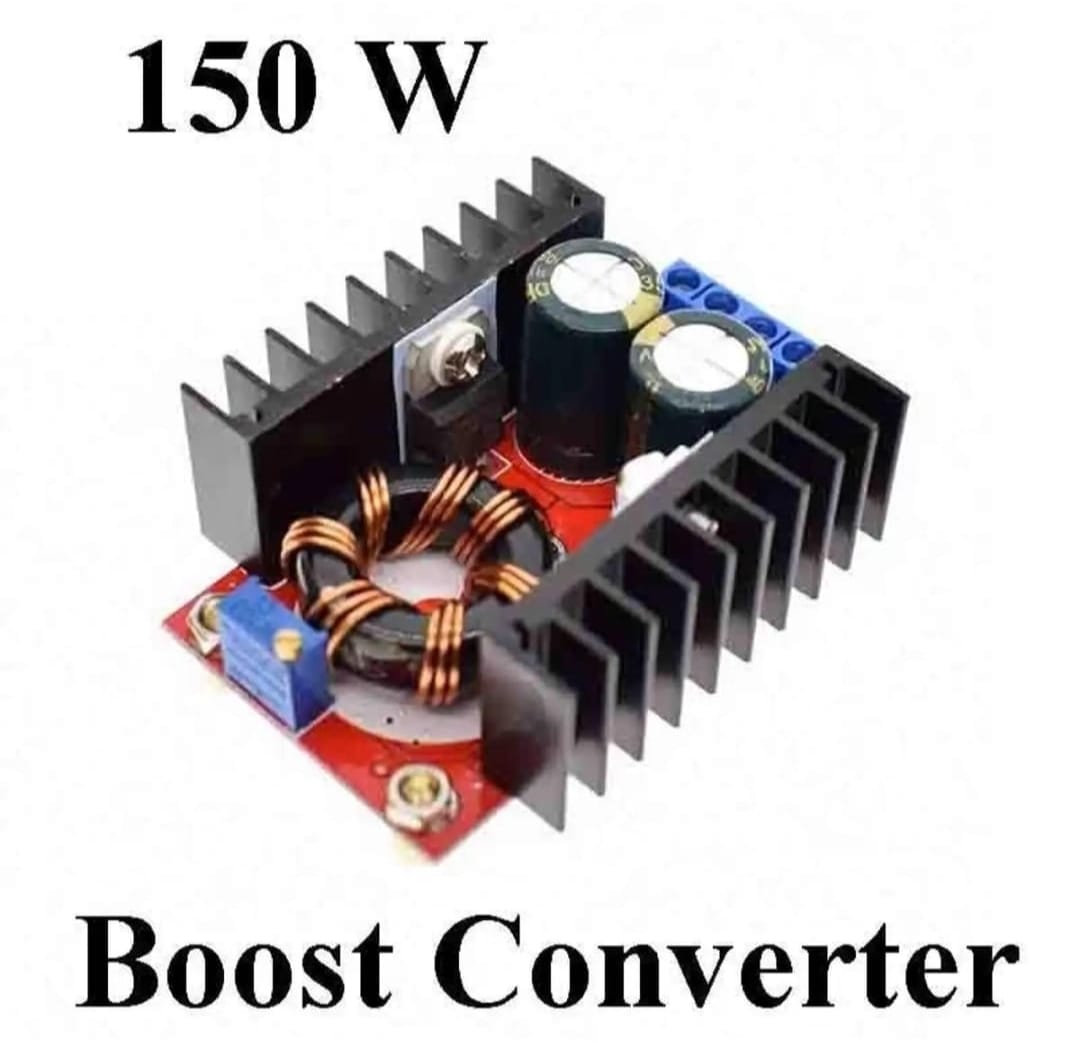

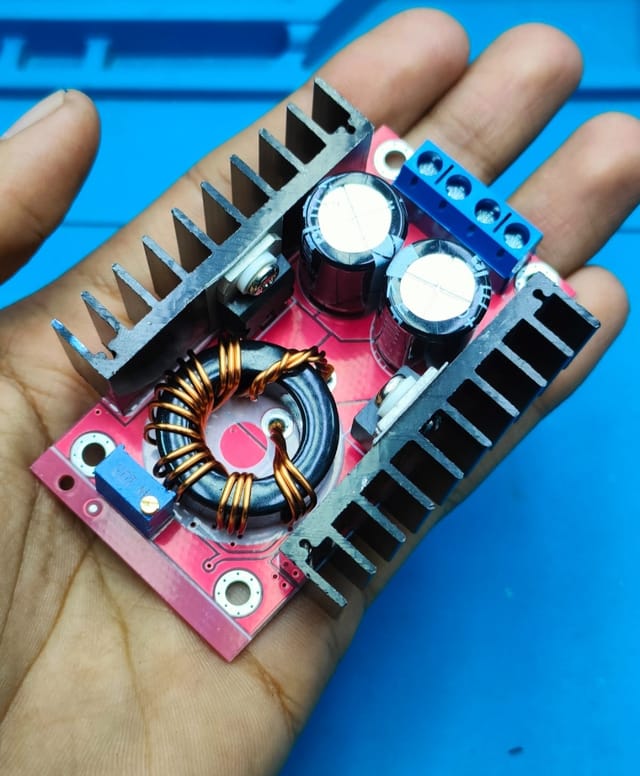

150W Boost Converter
boost converter 150W booster
Real Electronics
Category List
All products
এটা দিয়ে ভোল্টে বৃদ্ধি করতে পারবেন।,
Input voltage: 10-32V
Output voltage: (1) Continuous adjustable (12-35V) The deck shipment voltage of the store 19V
(2) Fixed output (any choice between 12-35V), please tell the shopkeeper when buying.
Output current: 6A (MAX)
Input current: 10A (MAX) (please strengthen heat dissipation over 10A,)
Output power: natural cooling 100W (MAX), adding fans 150W (MAX)
Easily drive 65W 90W laptop, including dual -core
Use a 12V battery with an ordinary 19V 3.42A laptop module temperature of about 45 degrees
Conversion efficiency: 94%(measure when input 16V output 19V 2.5A) (for reference only)
Work temperature: Industrial grade (-40 ° C to +85 ° C) (the ambient temperature exceeds 40 degrees, please reduce power use, or add fan)
Full load temperature: 45 ℃
Air load current: Typical 25mA
Short -circuit protection: None (please enter and add an overcurrent protector)
Enter anti -connection protection: None, enter the two poles in the input series
Input voltage: 10-32V
Output voltage: (1) Continuous adjustable (12-35V) The deck shipment voltage of the store 19V
(2) Fixed output (any choice between 12-35V), please tell the shopkeeper when buying.
Output current: 6A (MAX)
Input current: 10A (MAX) (please strengthen heat dissipation over 10A,)
Output power: natural cooling 100W (MAX), adding fans 150W (MAX)
Easily drive 65W 90W laptop, including dual -core
Use a 12V battery with an ordinary 19V 3.42A laptop module temperature of about 45 degrees
Conversion efficiency: 94%(measure when input 16V output 19V 2.5A) (for reference only)
Work temperature: Industrial grade (-40 ° C to +85 ° C) (the ambient temperature exceeds 40 degrees, please reduce power use, or add fan)
Full load temperature: 45 ℃
Air load current: Typical 25mA
Short -circuit protection: None (please enter and add an overcurrent protector)
Enter anti -connection protection: None, enter the two poles in the input series
