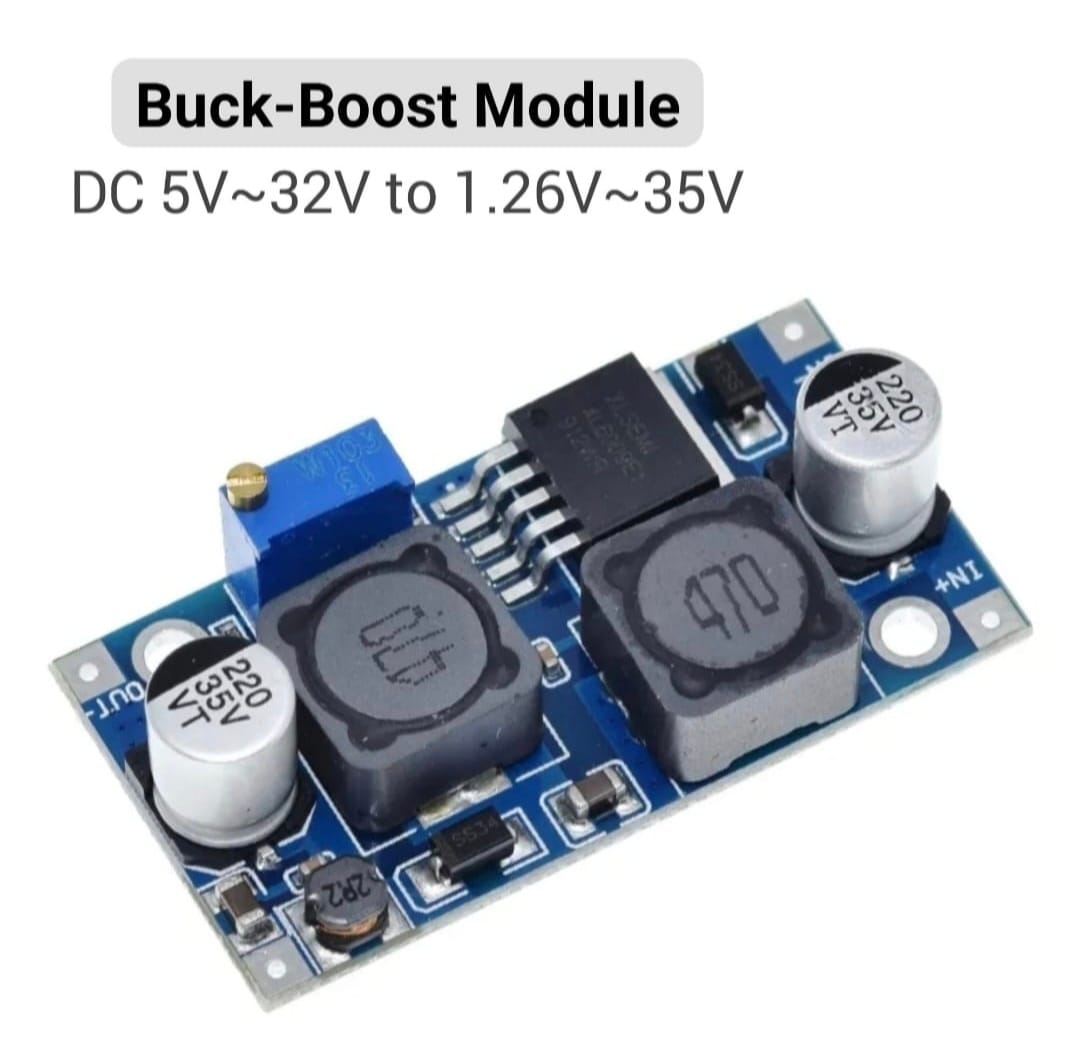

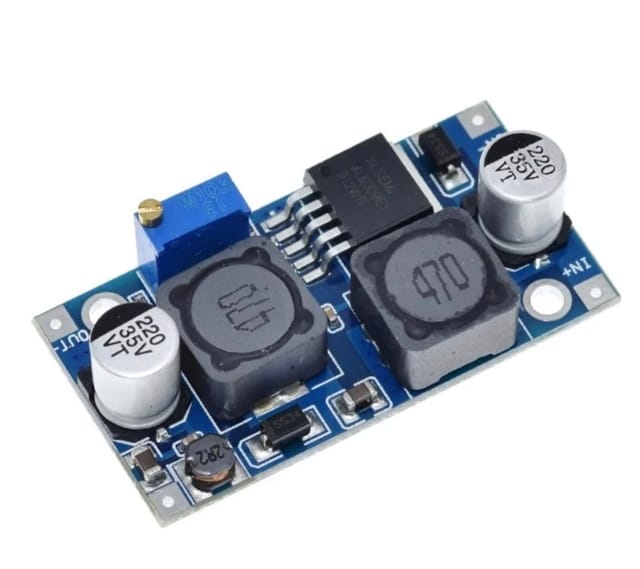

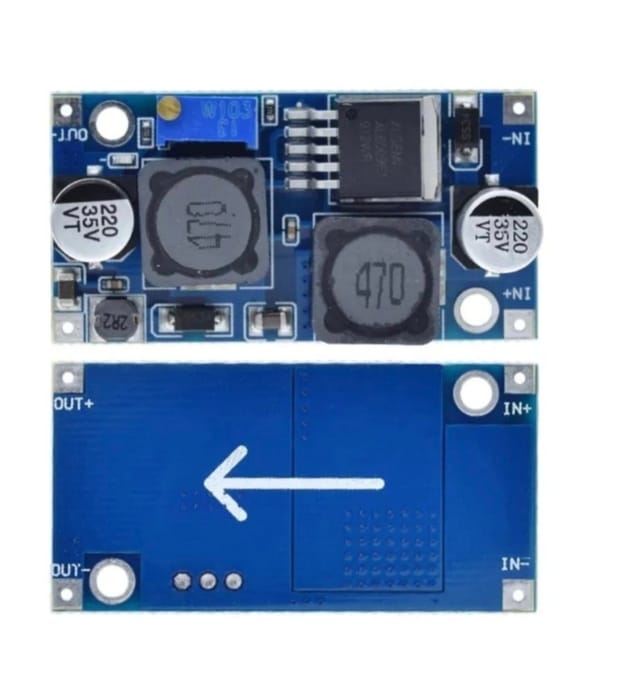

XL6009 Auto Boost-Buck Adjustable Step Up & Step Down Converter 1.25-36V Adjustable

Input Range:3.8V - 32VOutput Range:1.25V - 35VInput Current: 3A ( max ) , no-load 18mA (5V input , 8V output , no-load is less than 18mA. Higher the voltage , the greater the load current . )Conversion efficiency:Switching frequency:400KHzOutput Ripple:50mV ( the higher the voltage , the greater the current , the greater the ripple )Load Regulation:± 0.5%Voltage Regulation:± 0.5%Operating Temperature:-40 - +85

categories

Category List

All products

•
•
•

• Input Range:3.8V - 32V

•

  Output Range:1.25V - 35V

•

  Input Current: 3A ( max ) , no-load 18mA (5V input , 8V output , no-load is less than 18mA. Higher the voltage , the greater the load current . )

•

  Conversion efficiency:<94% ( greater the pressure , the lower the efficiency )

•

  Switching frequency:400KHz

•

  Output Ripple:50mV ( the higher the voltage , the greater the current , the greater the ripple )

•

  Load Regulation:± 0.5%

•

  Voltage Regulation:± 0.5%

•

  Operating Temperature:-40 - +85

XL6009 Auto Boost-Buck Adjustable Step Up & Step Down Converter 1.25-36V Adjustable

175 BDT

add_to_cartbuy_now

• Input Range:3.8V - 32V

•

  Output Range:1.25V - 35V

•

  Input Current: 3A ( max ) , no-load 18mA (5V input , 8V output , no-load is less than 18mA. Higher the voltage , the greater the load current . )

•

  Conversion efficiency:<94% ( greater the pressure , the lower the efficiency )

•

  Switching frequency:400KHz

•

  Output Ripple:50mV ( the higher the voltage , the greater the current , the greater the ripple )

•

  Load Regulation:± 0.5%

•

  Voltage Regulation:± 0.5%

•

  Operating Temperature:-40 - +85
