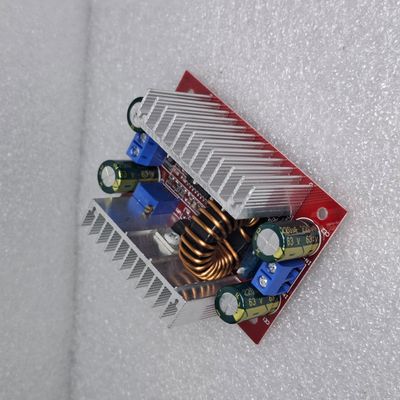

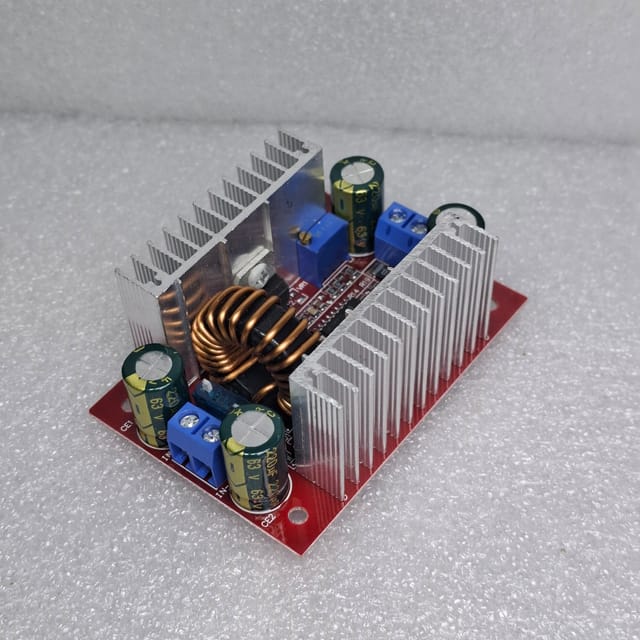

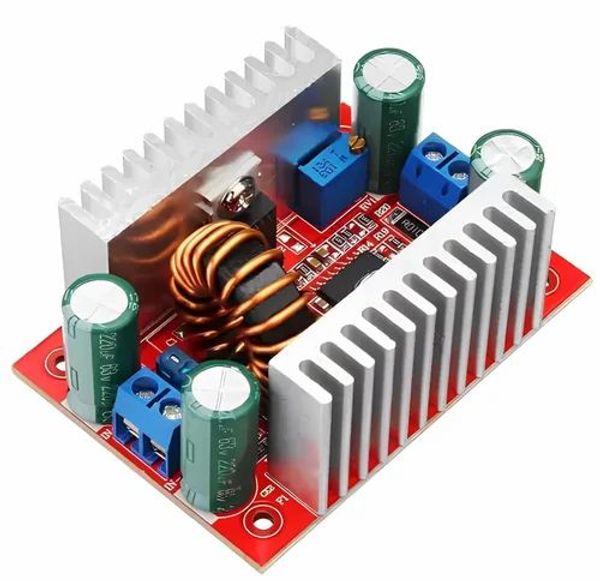

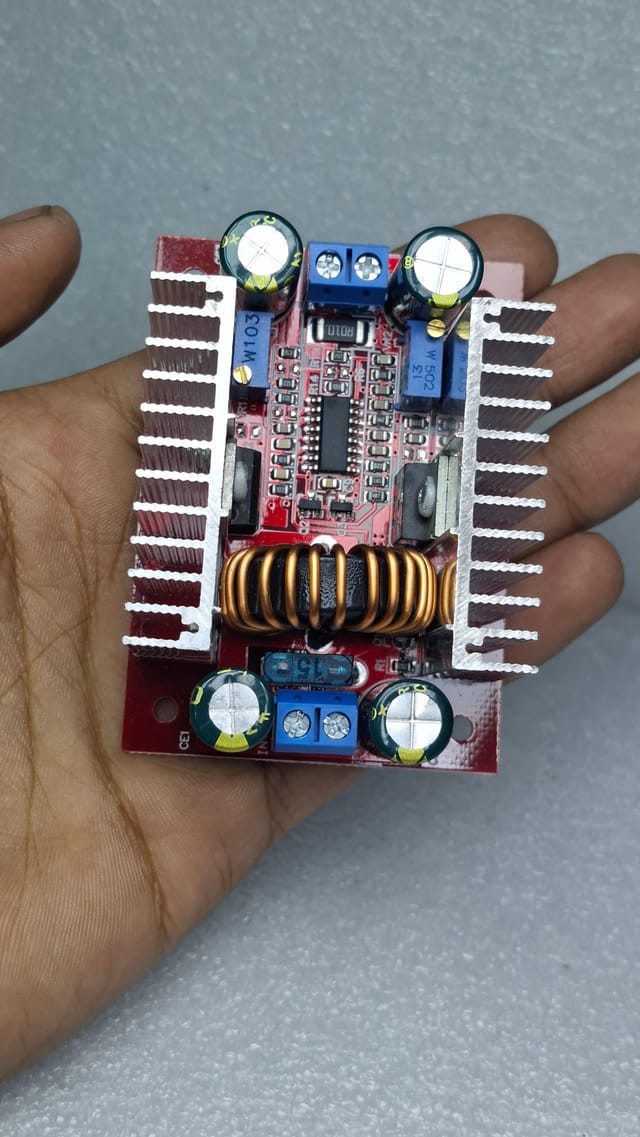

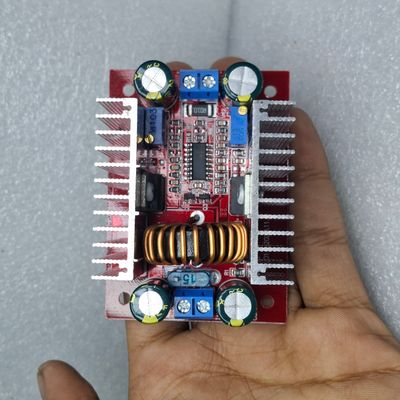

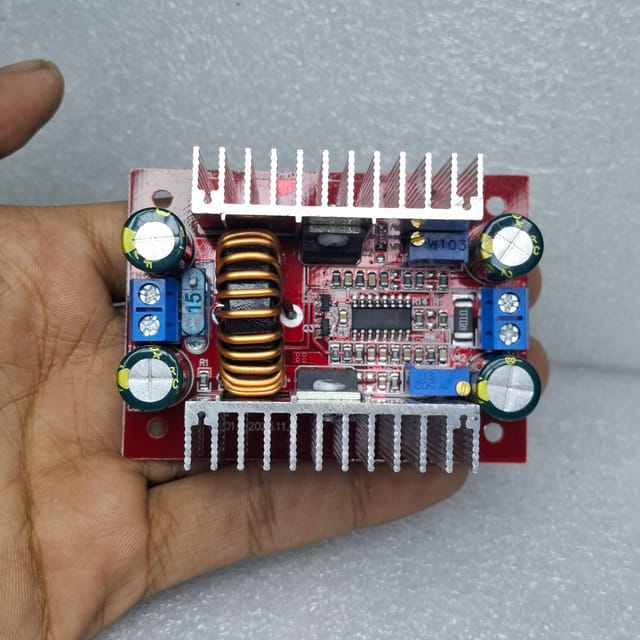

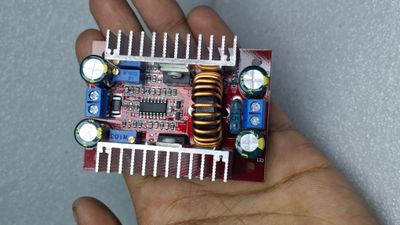

400W Dc-Dc Step Up Boost Converter Constant Current Power Supply Module DC 8.5V-50V To Dc 10V-60V
15A 400W Dc-Dc Step Up Boost Converter Constant Current Power Supply Module Led Driver Step Up Voltage Module Dc 8.5V-50V To Dc 10V-60V Rs1837 Boost Module 15A 400W Adaptersâ - Multi Plug Input Voltage: DC 8.5V to 50V Output Voltage: DC 10V to 60V
Real Electronics
Category List
All products
Input Voltage: DC 8.5V to 50V
Output Voltage: DC 10V to 60V
Max. Input Current: 15A
• Max. Output Current: 12A
• Quiescent Current: 10mA
Constant Current Range: 0.2A to 12A
Operating Temperature: -40° to 85°
Input and output are designed with screw terminals for convenient wire connection and disconnection.
High efficiency, the maximum conversion efficiency can be 96% and efficiency is related to input/output voltage, current and voltage difference.
• There are 2 heat sinks that would ensure a better heat dissipation.
• It can also be used as a driver for high power LED lights or voltage regulator for solar panels.

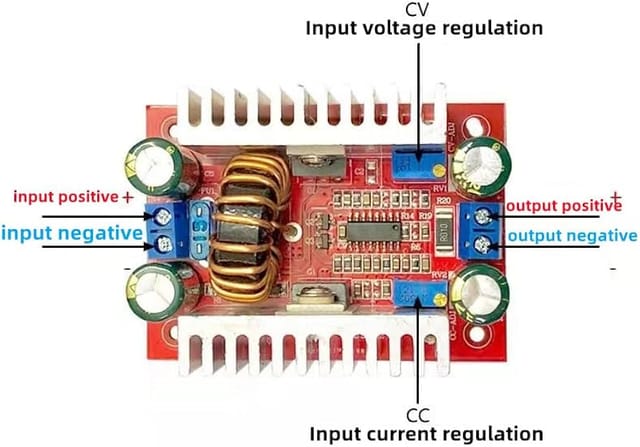

Adjust "CV-ADJ" potentiometer clockwise to reduce voltage, counterclockwise to increase voltage.
• Adjust "CC-ADJ" potentiometer counterclockwise about 30 circles to minimize the output current before connecting to load(clockwise to increase current, counterclockwise to reduce current). Then adjust "CC-ADJ" clockwise to the current value you need. If you use the module for battery
Output Voltage: DC 10V to 60V
Max. Input Current: 15A
• Max. Output Current: 12A
• Quiescent Current: 10mA
Constant Current Range: 0.2A to 12A
Operating Temperature: -40° to 85°
Input and output are designed with screw terminals for convenient wire connection and disconnection.
High efficiency, the maximum conversion efficiency can be 96% and efficiency is related to input/output voltage, current and voltage difference.
• There are 2 heat sinks that would ensure a better heat dissipation.
• It can also be used as a driver for high power LED lights or voltage regulator for solar panels.
Adjust "CV-ADJ" potentiometer clockwise to reduce voltage, counterclockwise to increase voltage.
• Adjust "CC-ADJ" potentiometer counterclockwise about 30 circles to minimize the output current before connecting to load(clockwise to increase current, counterclockwise to reduce current). Then adjust "CC-ADJ" clockwise to the current value you need. If you use the module for battery
400W Dc-Dc Step Up Boost Converter Constant Current Power Supply Module DC 8.5V-50V To Dc 10V-60V
450 BDT
Input Voltage: DC 8.5V to 50V
Output Voltage: DC 10V to 60V
Max. Input Current: 15A
• Max. Output Current: 12A
• Quiescent Current: 10mA
Constant Current Range: 0.2A to 12A
Operating Temperature: -40° to 85°
Input and output are designed with screw terminals for convenient wire connection and disconnection.
High efficiency, the maximum conversion efficiency can be 96% and efficiency is related to input/output voltage, current and voltage difference.
• There are 2 heat sinks that would ensure a better heat dissipation.
• It can also be used as a driver for high power LED lights or voltage regulator for solar panels.
Adjust "CV-ADJ" potentiometer clockwise to reduce voltage, counterclockwise to increase voltage.
• Adjust "CC-ADJ" potentiometer counterclockwise about 30 circles to minimize the output current before connecting to load(clockwise to increase current, counterclockwise to reduce current). Then adjust "CC-ADJ" clockwise to the current value you need. If you use the module for battery
Output Voltage: DC 10V to 60V
Max. Input Current: 15A
• Max. Output Current: 12A
• Quiescent Current: 10mA
Constant Current Range: 0.2A to 12A
Operating Temperature: -40° to 85°
Input and output are designed with screw terminals for convenient wire connection and disconnection.
High efficiency, the maximum conversion efficiency can be 96% and efficiency is related to input/output voltage, current and voltage difference.
• There are 2 heat sinks that would ensure a better heat dissipation.
• It can also be used as a driver for high power LED lights or voltage regulator for solar panels.
Adjust "CV-ADJ" potentiometer clockwise to reduce voltage, counterclockwise to increase voltage.
• Adjust "CC-ADJ" potentiometer counterclockwise about 30 circles to minimize the output current before connecting to load(clockwise to increase current, counterclockwise to reduce current). Then adjust "CC-ADJ" clockwise to the current value you need. If you use the module for battery
