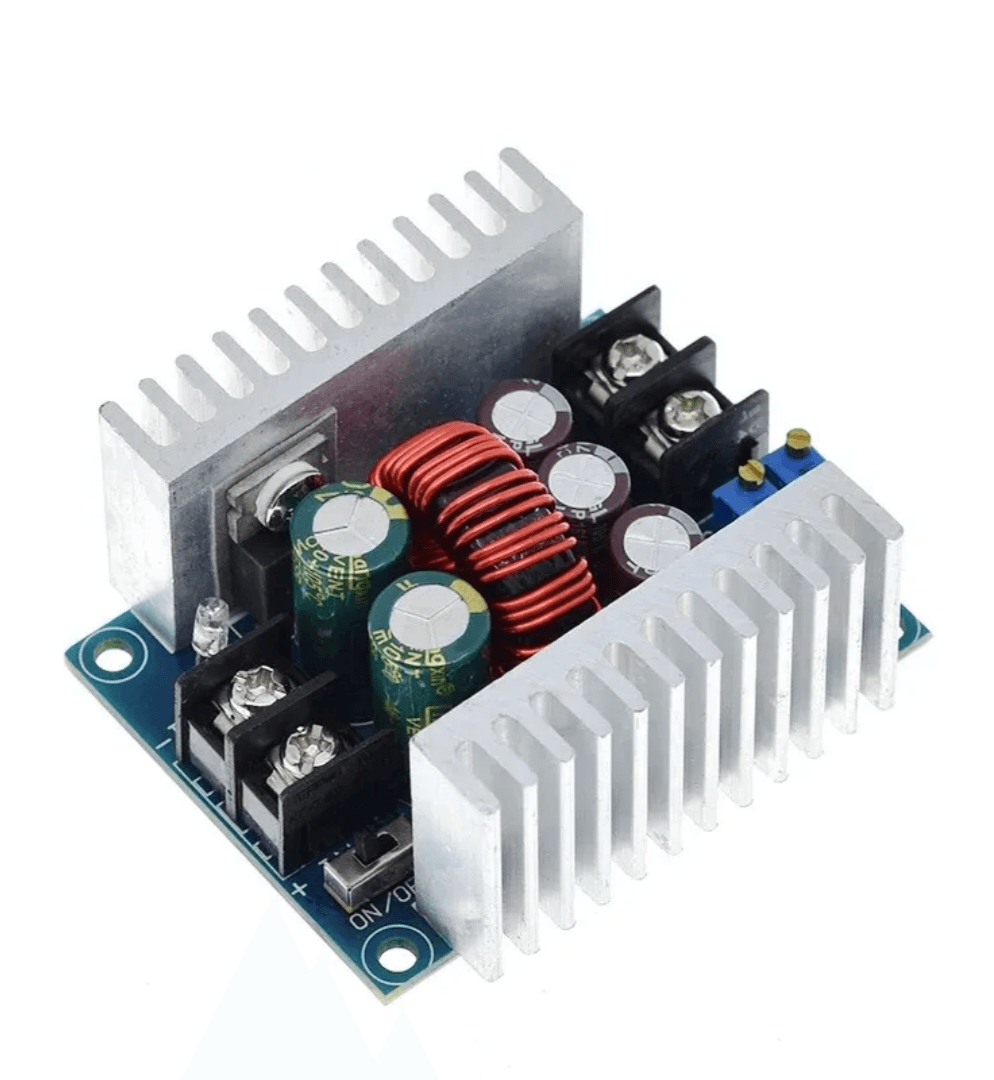

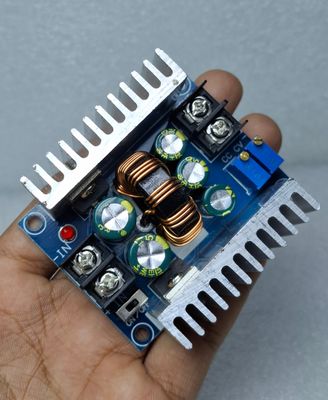

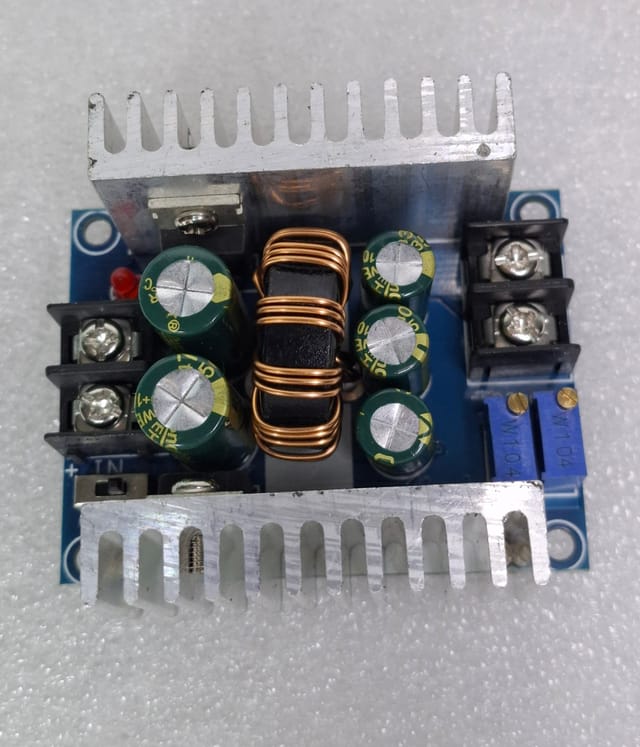

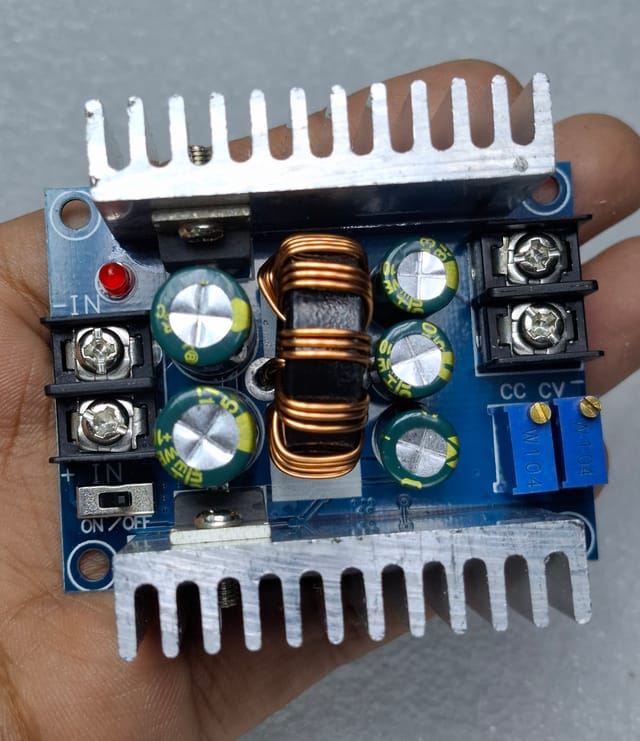

300W 20A Constant Current Adjustable Buck Converter Step-Down Voltage Module
300W 20A CC CV Constant Current Adjustable Step Down Converter Voltage 1.2V-35V Buck Current Source Module
Real Electronics
Category List
All products
Specifications:
Input Voltage: 6V to 40V DC(10V to 40V is suggested)
Output Voltage: 1.2V to 36V DC Output
Current: 20A(max.), 15A(suggested)
Efficiency: 95%(24V to 12V, 20A)
Terminal Short Circuit Protection: Self-recovery(cannot short circuit for long time)
Input Voltage: 6V to 40V DC(10V to 40V is suggested)
Output Voltage: 1.2V to 36V DC Output
Current: 20A(max.), 15A(suggested)
Efficiency: 95%(24V to 12V, 20A)
Terminal Short Circuit Protection: Self-recovery(cannot short circuit for long time)
300W 20A Constant Current Adjustable Buck Converter Step-Down Voltage Module
450 BDT
Specifications:
Input Voltage: 6V to 40V DC(10V to 40V is suggested)
Output Voltage: 1.2V to 36V DC Output
Current: 20A(max.), 15A(suggested)
Efficiency: 95%(24V to 12V, 20A)
Terminal Short Circuit Protection: Self-recovery(cannot short circuit for long time)
Input Voltage: 6V to 40V DC(10V to 40V is suggested)
Output Voltage: 1.2V to 36V DC Output
Current: 20A(max.), 15A(suggested)
Efficiency: 95%(24V to 12V, 20A)
Terminal Short Circuit Protection: Self-recovery(cannot short circuit for long time)
