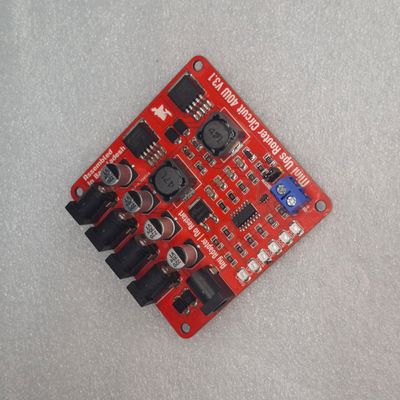

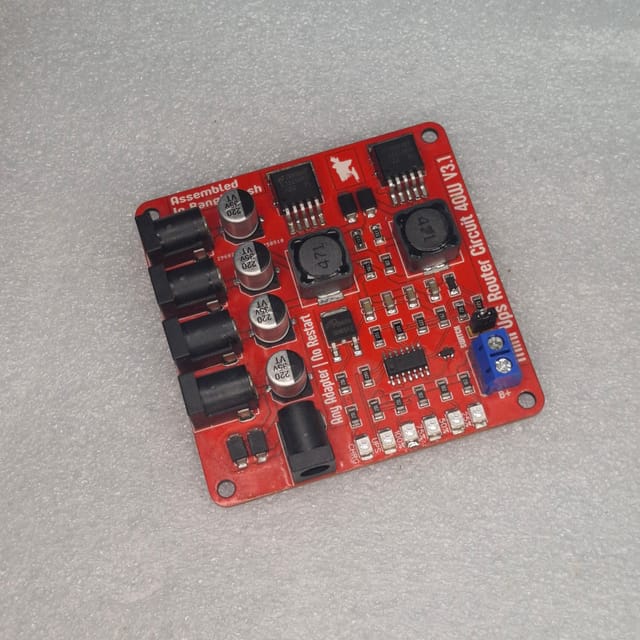

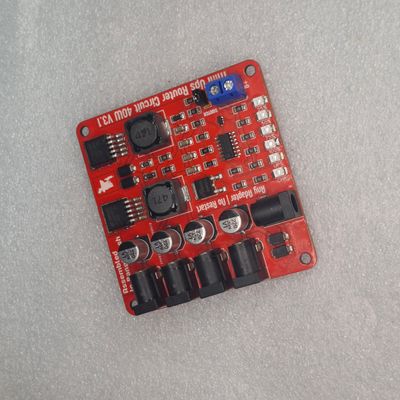

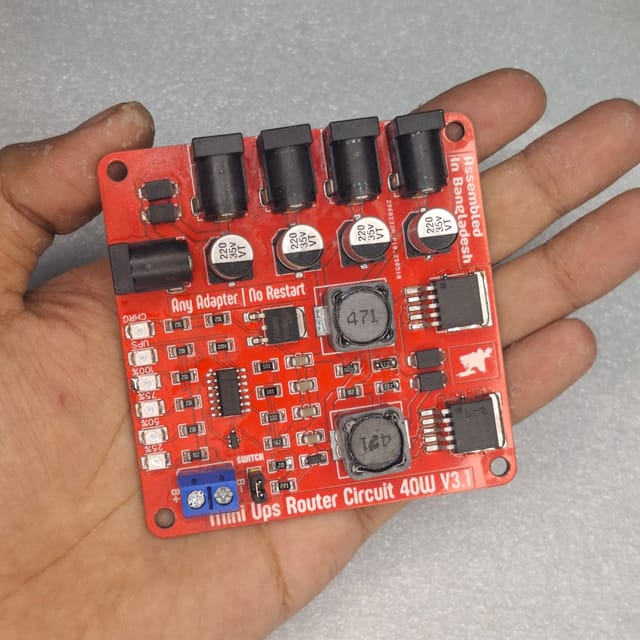

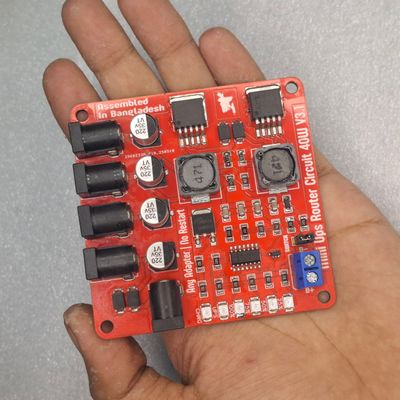

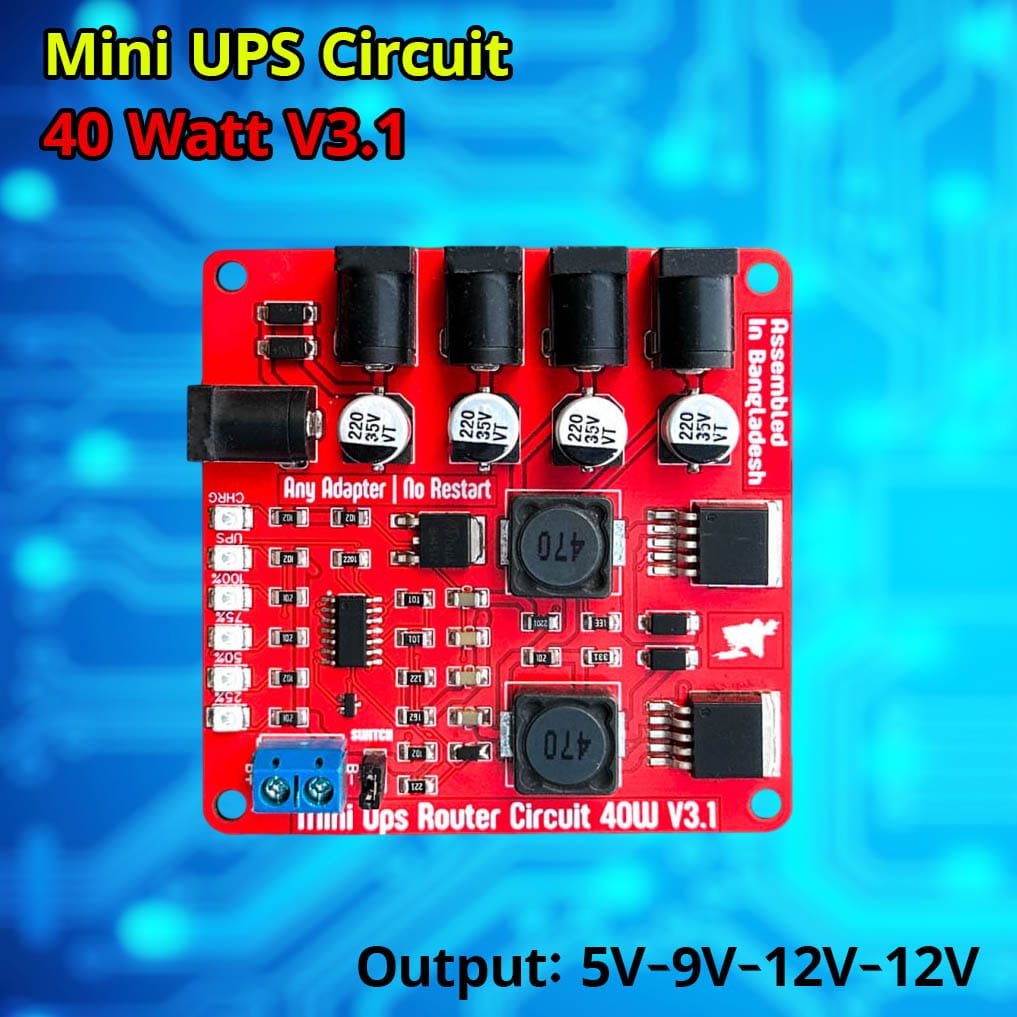

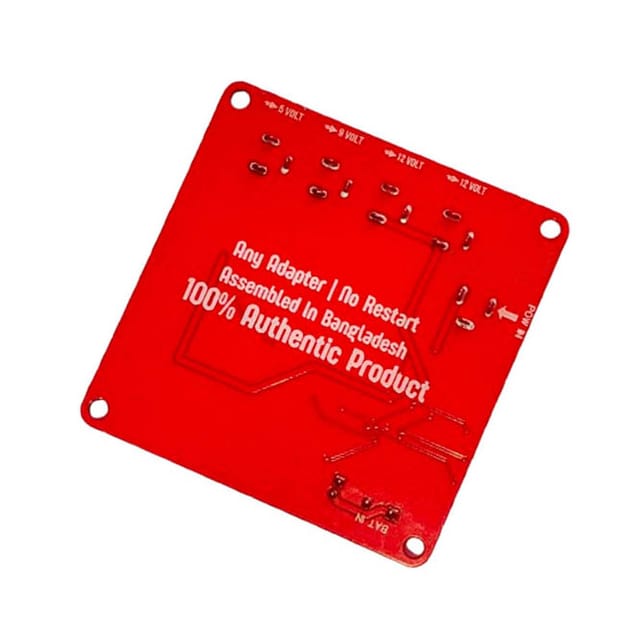

Router UPS Board V3.1
ups v3.1 ups board ups circuit router UPS board Wi-Fi UPS circuit
Real Electronics
Categories
Category List
All products
Maximum 57.5W Output
Port 1 - 12V 1.5A Output.
Port 2 - 12V 1.5A Output.
Port 3 - 9V 2A Output.
Port 4 – 5V 2A Output.
12.6V-13.0V (2A-5A) Input Power.
Short Circuit Protection.
High Voltage Protection.
+, - Polarity Protection.
Output Voltage tolerance (+, -)0.05.
Battery percentage Indicator 100%, 75%, 50% & 25%.
ALL SMD Component.
Output Overvoltage Protection.
Thunder protection.
Battery input -12V (3S Li-ion 18650/21700 battery)
Battery full Charge Voltage 12.6V
Battery Low Voltage 10.5V
Router UPS Board V3.1
435 BDT
Add to cart
Buy now
Maximum 57.5W Output
Port 1 - 12V 1.5A Output.
Port 2 - 12V 1.5A Output.
Port 3 - 9V 2A Output.
Port 4 – 5V 2A Output.
12.6V-13.0V (2A-5A) Input Power.
Short Circuit Protection.
High Voltage Protection.
+, - Polarity Protection.
Output Voltage tolerance (+, -)0.05.
Battery percentage Indicator 100%, 75%, 50% & 25%.
ALL SMD Component.
Output Overvoltage Protection.
Thunder protection.
Battery input -12V (3S Li-ion 18650/21700 battery)
Battery full Charge Voltage 12.6V
Battery Low Voltage 10.5V
